Amplificatore per autoradio Coral Electronic TA 440.

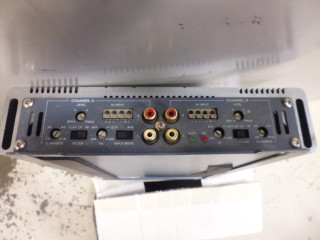

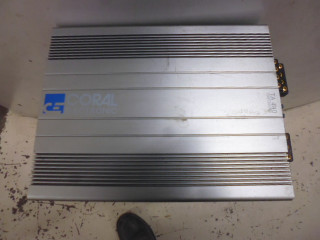

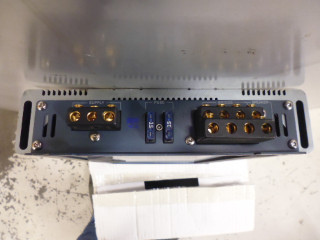

Amplificatore per autoradio Coral Electronic TA 440. Usato come da foto.

TECHNICAL DATA:

total music power: 480 W

rms power (4 ohm): 4x40 W

rms power (2 ohm): 4x60 W

rms power (4ohm, 3 canali): 2x40 + 1x120 W

high-pass cut: 40÷400 Hz

high-pass slope: 12 dB/oct

low-pass cut: 40÷400 Hz

low-pass slope: 12 dB/oct

freq. response (-3 dB): 10÷30K Hz

X-Pander frequency: 80 Hz

X-Pander gain: 0÷18 dB

T.H.D.: 0.04 %

S/N ratio: 90 dB

input sensitivity (RCA): 0.2÷5 V

input impedance (RCA): 22 Kohm

input sens. (high-level): 1÷10 V

power supply: 11÷15 V

max power current : 30 A

internal fuses: 2x15 A

size: 220x320x50 mm
